The PICO1TRCL is a physical computing board that is compatible with the
Arduino software environment. The board size is 2.1" x 1.65".
All I/O pins from the ATmega328 are
brought out on 2 rows of 14 pins (300mil spacing).

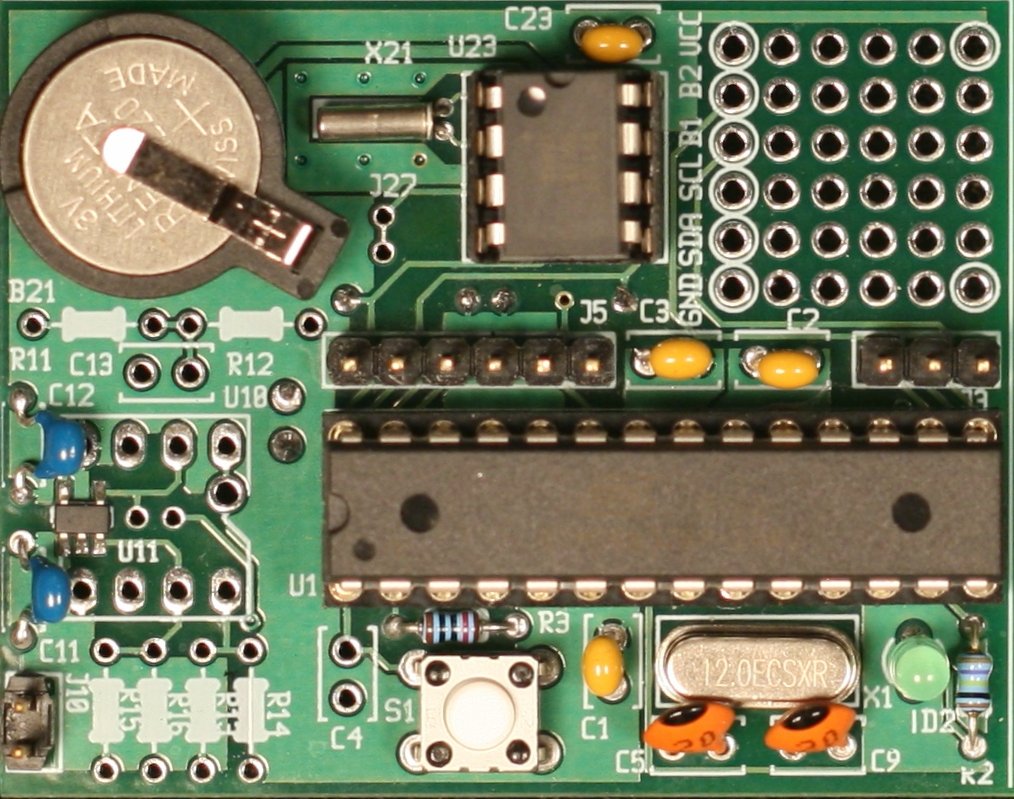

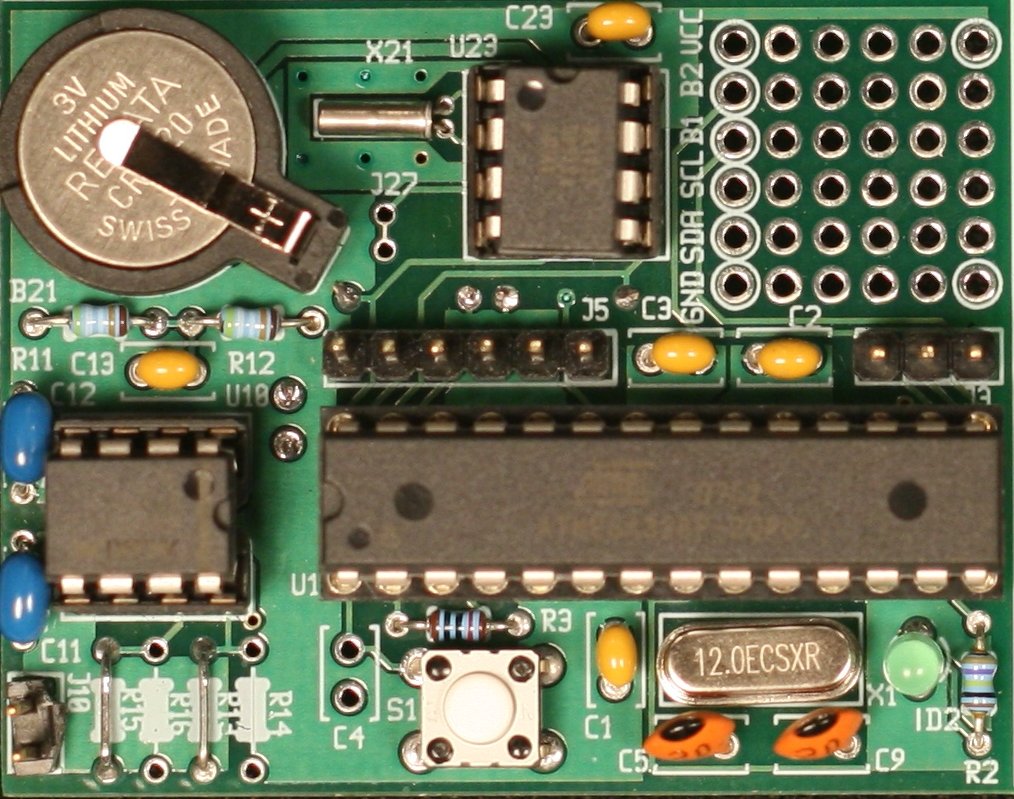

There is an SMD kit (bottom right picture) and a TH kit (top right
picture). The LDO regulator in the SMD version is in a SOT23-5
package and has an Iq of 900nA. The LDO regulator in the TH kit is an
DIP-8 package and has an Iq of 15uA. The PCB is the same for both
kits.
Features
- 2.1" x 1.65"
- Replaceable and upgradeable CPU (ATmega168 or ATmega328)
- Compatible with the Arduino development tools.
- Dual output voltage LDO -- 3.3V/2.2V
- Low LDO Iq -- 900nA (SMD), 15uA (TH)
- RTC Features
- Real-Time Clock (RTC) counts Seconds,
Minutes, Hours, Day, Date, Month, and Year
with Leap-Year Compensation Valid Up to
2100
- Two Time-of-Day Alarms
- Programmable Square-Wave Output
- Backup power from a CR1220 coin cell.
- I2C Serial Interface
- Two rows of 14 pins (300mil spacing) with all ATmega168/328 I/O functions.
- Six pin header for an FTDI TTL-232R-3V3 cable.
- Debug LED that can be jumpered to Pin 7 or disconnected.
- A/D reference supply filtered per Atmel specification.
- Reset circuit per Atmel specification.
Pricing
| Part Number
| Description
| Price | Qty
|
| | PICO1TRCL-SMD-KIT
| datasheet
| Small, low-cost ATmega328 Kit with RTC, Low Iq dual voltage LDO (SMD)
| 18.00USD | | 1
|
|
| | PICO1TRCL-TH-KIT
| datasheet
| Small, low-cost ATmega328 Kit with RTC, Low Iq dual voltage LDO (TH)
| 20.00USD | | 1
|
|
| | PICO1TRCL-SMD-KIT-F
| datasheet
| PICO1TRCL + FTDI-TTL-232R-3V3 Cable
| 33.00USD | | 1
|
|
| | PICO1TRCL-TH-KIT-F
| datasheet
| PICO1TRCL + FTDI-TTL-232R-3V3 Cable
| 35.00USD | | 1
|
|
|
Accessories
The FTDI USB to Serial Cable TTL-232R-3V3 is required to program
the PICO1TRC. If the board is configured for 5V operation then either
the 3.3V or 5V FTDI cable will work.
| Part Number
| Description
| Price | Qty
|
| | FTDI-TTL-232R-3V3
| datasheet
| USB to RS232 (3.3V TTL)
| 20.00USD | | 1
|
|
|
PICO1TRCL-SMD-KIT Component List
| Item Number
| Quantity
| Description
|
| | 1
| 1
| connector, battery, CR1220
| | 2
| 5
| capacitor, ceramic, 0.1uF, 10%, 50V, X7R
| | 3
| 2
| capacitor, ceramic, 20pF
| | 4
| 2
| capacitor, ceramic, 2.2uF, 10%, 10V, X5R
| | 5
| 1
| diode, 1N4148
|
| | 6
| 1
| LED, T1, Green
| | 7
| 2
| diode, BAT41
| | 8
| 1
| header, 3x1, 100mils
| | 9
| 1
| header, 6x1, 100mils
| | 10
| 1
| header, 2x1, 100mils
|
| | 11
| 1
| inductor, 10uH, 10%
| | 12
| 4
| resistor, 10K, 1/8W, 1%
| | 13
| 1
| resistor, 374 Ohm, 1/8W, 1%
| | 14
| 1
| pushbutton
| | 15
| 1
| ATmega328-20PU, 32K/1K/2K, 20MHz
|
| | 16
| 1
| TI_TPS780330220DDC
| | 17
| 1
| IC, RTC, DS1337+
| | 18
| 1
| crystal, 12MHz, 20pF, HC49US
| | 19
| 1
| crystal, 32.768KHz, 6pF, 2x6mm package
| | 20
| 1
| DIP Socket, 8 Pin, 300mil centers
|
| | 21
| 1
| Shunt with handle
| | 22
| 1
| DIP Socket, 28 Pin, 300mil centers, Wire Wrap
| | 23
| 1
| wiblock_PICO1TRCL-PCB
|
|
PICO1TRCL-TH-KIT Component List
| Item Number
| Quantity
| Description
|
| | 1
| 1
| connector, battery, CR1220
| | 2
| 6
| capacitor, ceramic, 0.1uF, 10%, 50V, X7R
| | 3
| 2
| capacitor, ceramic, 20pF
| | 4
| 2
| capacitor, ceramic, 2.2uF, 10%, 10V, X5R
| | 5
| 1
| diode, 1N4148
|
| | 6
| 1
| LED, T1, Green
| | 7
| 2
| diode, BAT41
| | 8
| 1
| header, 3x1, 100mils
| | 9
| 1
| header, 6x1, 100mils
| | 10
| 1
| header, 2x1, 100mils
|
| | 11
| 1
| inductor, 10uH, 10%
| | 12
| 4
| resistor, 10K, 1/8W, 1%
| | 13
| 1
| resistor, 374 Ohm, 1/8W, 1%
| | 14
| 1
| resistor, 845K, 1/8W, 1%
| | 15
| 1
| resistor, 1.0M, 1/8W, 1%
|
| | 16
| 1
| pushbutton
| | 17
| 1
| ATmega328-20PU, 32K/1K/2K, 20MHz
| | 18
| 1
| Maxim_MAX882CPA
| | 19
| 1
| IC, RTC, DS1337+
| | 20
| 1
| crystal, 12MHz, 20pF, HC49US
|
| | 21
| 1
| crystal, 32.768KHz, 6pF, 2x6mm package
| | 22
| 2
| DIP Socket, 8 Pin, 300mil centers
| | 23
| 1
| Shunt with handle
| | 24
| 1
| DIP Socket, 28 Pin, 300mil centers, Wire Wrap
| | 25
| 1
| wiblock_PICO1TRCL-PCB
|
|
|
